ADHESIVES FOR REBAR PLANTING

PRODUCT OVERVIEW

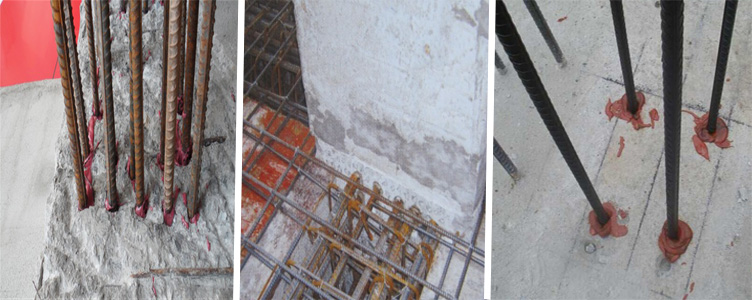

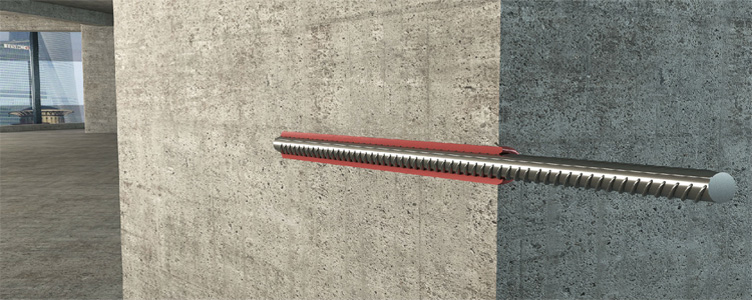

A reinforcing bar is is commonly used in building construction to strengthen load bearing structures. A ribbed or barbed steel bar is inserted into a concrete, rock or other substrate pre-drilled hole where it is secured with a high strength adhesive. The Bond Chemicals supplies high-strength, high cohesive force adhesives for such applications. It has the following main characteristics:

■ Eco-friendly, construction safe and reliable.

■ High strength, strong adhesion, toughness, equivalent to pre-embedded materials

■ Good heat resistance, no creep at ambient temperature.

■ Modified epoxy resin, anti-acid, anti-alkali, anti-aging, resistant to UV.

■ Good Thixotropy especially for side or top anchorage.

APPLICATIONS

CoolBond^® Epoxy is a two-component outdoor epoxy series developed by The Bond Chemical是and BTA Australia. It has excellent outdoor weather, acid and alkali resistant properties. CoolBond^® EP-238 is a multi-purpose epoxy adhesive mainly used for bonding various structural engineering materials such as metal, concrete, stone, brick and a variety of hard plastics, ideally for outdoor cement concrete bonding and anchoring for road, bridges constructions

PRODUCTS

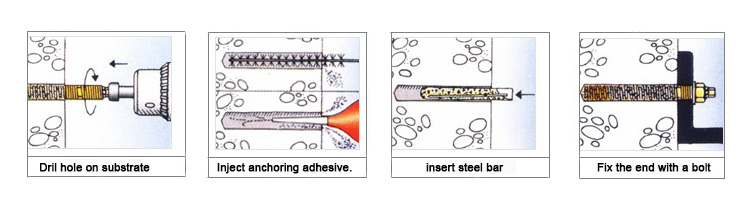

APPLICATION GUIDE

1.    Drill a hole on the substrates eg. concrete, wall rock and etc.

2. Clean the designated area, removing the loose dust.

3.    Inject high-strength Coolbond anchoring adhesive.

4.    Insert steel bar.

5.    Fix the end of steel bar with a bolt.

Note:

1.      Only apply to the dry and clean surfaces at temperature above 5 ℃.

2.      Do not spray water on the surface within 4 hours of application.

3.      Do not shift the application objects before curing.

TECHNICAL PARAMETERS
