CARBON FIBRE IMPREGNATION ADHESIVE
PRODUCT OVERVIEW
Fiber composite materials include carbon fiber (CFRP), aramid fiber (AFRP) and glass fiber (GFRP). Carbon fiber cloth is the most commonly used fiber composite for reinforcement. Fiber composite material reinforcement has advantage of lightweight and high strength, and seamless. It can adapt to the surface shape of the concrete on application. It is corrosion-resistant, moisture-resistant and easy construction. The Bond Chemicals provide the thixotropic monosilicate system products for carbon fiber sheet bonding and reinforcement purposes. Optionally it also provides Impregnated type of products. Following are the main characteristics:
■ Eco-friendly products, construction safe and reliable
■ EP-316 is a single-gel system with good Infiltration, thixotropy and defoaming properties.
■ High mechanical strength which ensuring the overall performance of reinforcement components
■ Low shrinkage on curing, with long-term carrying capacity and anti-aging properties
■ Anti-moisture permeability, good water resistant and corrosion resistant properties.
APPLICATIONS

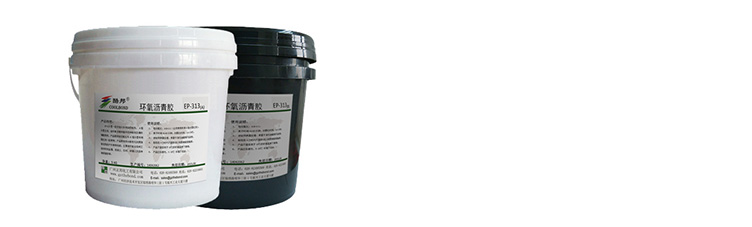

CoolBond® EP-316 is a two-component adhesive made from asphalt-modified epoxy. The product has the characteristics of both epoxy and asphalt. It has excellent outdoor performance such as waterproof, anti-aging and anti-corrosion. EP-316 is a general purpose epoxy adhesive for building construction for varieties of materials such as metal, concrete, stone, brick, and hard plastic. It is ideal adhesives for road and bridges materials with asphalt concrete pavement, for instance, laying of the road block etc..
PRODUCTS

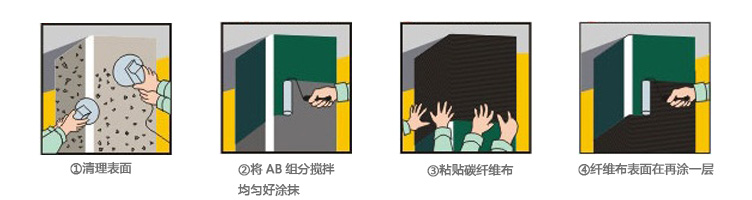

1. Add product A to curing agent B into a container and mix thoroughly.
2. Clean the designated area thoroughly, removing the floating pulp skin, loose objects, dust, grease, etc..
3. Only apply to the dry and clean surfaces at temperature above 5 ℃;
4. The first three guns must be abandoned.
5. Do not spray water on the surface within 4 hours of application.
6. Do not shift the application objects before curing.
TECHNICAL PARAMETERS
| Product Name | EP-316 |
| Mix Ratio A:B (weight) | A:B=2:1 |
| Mixture Appearance | Black viscous liquid |
| Mixture Density | 1.3 |
| Application Time (25ºC, min) | 30-40 |
| Initial Curing Time (25ºC, hours) | 1.5 |
| Curing Time (25ºC, hours) | 24 |
| Hardness (Shore D) | Comply with concrete structural re-enforcement standard GB50367 |

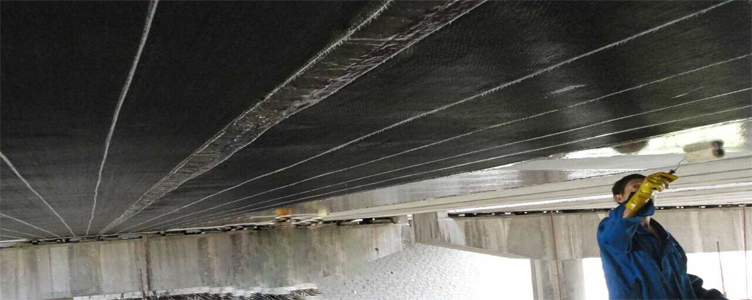

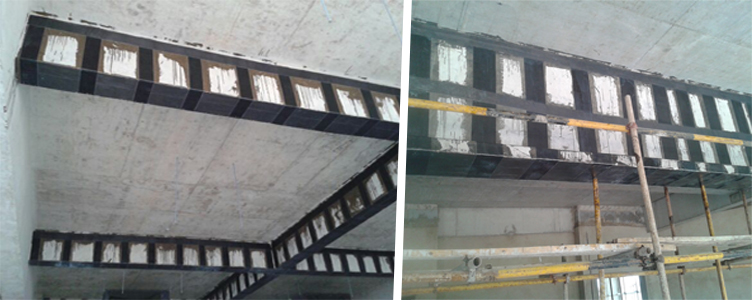

APPLICATION CASES
CARBON FIBRE IMPREGNATION ADHESIVE
PRODUCT OVERVIEW
Fiber composite materials include carbon fiber (CFRP), aramid fiber (AFRP) and glass fiber (GFRP). Carbon fiber cloth is the most commonly used fiber composite for reinforcement. Fiber composite material reinforcement has advantage of lightweight and high strength, and seamless. It can adapt to the surface shape of the concrete on application. It is corrosion-resistant, moisture-resistant and easy construction. The Bond Chemicals provide the thixotropic monosilicate system products for carbon fiber sheet bonding and reinforcement purposes. Optionally it also provides Impregnated type of products. Following are the main characteristics:
■ Eco-friendly products, construction safe and reliable
■ EP-316 is a single-gel system with good Infiltration, thixotropy and defoaming properties.
■ High mechanical strength which ensuring the overall performance of reinforcement components
■ Low shrinkage on curing, with long-term carrying capacity and anti-aging properties
■ Anti-moisture permeability, good water resistant and corrosion resistant properties.
APPLICATIONS
CoolBond® EP-316 is a two-component adhesive made from asphalt-modified epoxy. The product has the characteristics of both epoxy and asphalt. It has excellent outdoor performance such as waterproof, anti-aging and anti-corrosion. EP-316 is a general purpose epoxy adhesive for building construction for varieties of materials such as metal, concrete, stone, brick, and hard plastic. It is ideal adhesives for road and bridges materials with asphalt concrete pavement, for instance, laying of the road block etc..
PRODUCTS
1. Add product A to curing agent B into a container and mix thoroughly.
2. Clean the designated area thoroughly, removing the floating pulp skin, loose objects, dust, grease, etc..
3. Only apply to the dry and clean surfaces at temperature above 5 ℃;
4. The first three guns must be abandoned.
5. Do not spray water on the surface within 4 hours of application.
6. Do not shift the application objects before curing.
TECHNICAL PARAMETERS
| Product Name | EP-316 |
| Mix Ratio A:B (weight) | A:B=2:1 |
| Mixture Appearance | Black viscous liquid |
| Mixture Density | 1.3 |
| Application Time (25ºC, min) | 30-40 |
| Initial Curing Time (25ºC, hours) | 1.5 |
| Curing Time (25ºC, hours) | 24 |
| Hardness (Shore D) | Comply with concrete structural re-enforcement standard GB50367 |
APPLICATION CASES
